RD5206

Working Frequency: 13.56 MHz
Compatible Protocols ISO/IEC 15693 and ISO/IEC 18000-3M1
Power Supply: 12VDC
Interface: RS232 /RS485/USB/ Ethernet

ISO15693/ISO18000-3M1 RFID Card Reader HF RFID Antenna Long Reading Distance

Product Application:

  • Smart Shelves

    Product Introduction:

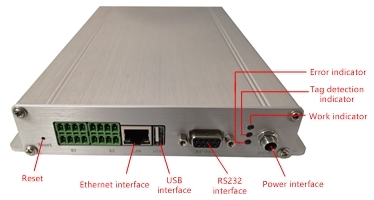

    RD5206 readers has three communication interfaces: Ethernet LAN port, RS232 interface, USB interface, users can choose different communication interfaces to connect according to their needs, as described below:

    ①Connect PC and reader via network cable: use a cross-connect network cable to connect the PC and the reader; or connect the PC and the reader through a network switch. Note: If the PC supports automatic cross direct connection, you can use a common network cable to connect.

    ②Connect PC and reader via RS232 serial cable: this device can be connected via RS232 serial cable or USB To RS232 converter.

    ③Connect the PC and the reader via the USB cable.



    Product Features:



    • Support ISO 15693 and ISO 18000-3M1 standard.
    • RF power: 1~8W(adjustable).

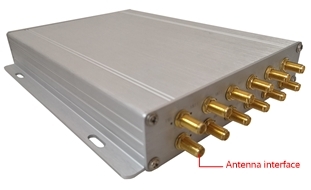

    • Antenna interface: adopts multi-antenna interface design, which can connect up to 30 antennas;
    • Support noise detection, be able to detect whether the environment has interference.
    • Fast anti-collision processing algorithm; the speed of reading the tag is up to 70pcs / sec
    • Reading and writing range: single antenna can reach 118cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
    • Communication interface: RS232, RS485, Ethernet, USB,CAN.
    • With short circuit protection and overheat protection function.
    • Support antenna standing wave detection.



    Parameter/Model RD5201 RD5206 RD5212 RD5224 RD5230
    Operating Frequency 13.56 MHz
    Support Standard ISO/IEC 15693 and ISO/IEC 18000-3M1
    RF Power 1~8W(configurable, the system default setting is 4W)
    Antenna Interface SMA×1 SMA×6 SMA×12 SMA×24 SMA×30
    Communication Interface RS232, RS485, Ethernet, USB
    Working Mode host mode and auto read mode(configurable)
    Supply Voltage 12V DC
    Maximum Power Consumption ≤35W
    Shell Material aluminum alloy metal plate
    Dimensions 200×168×33mm 308.5×207×38mm 438.6×207×38mm
    Maximum Operating Temperature 50℃
